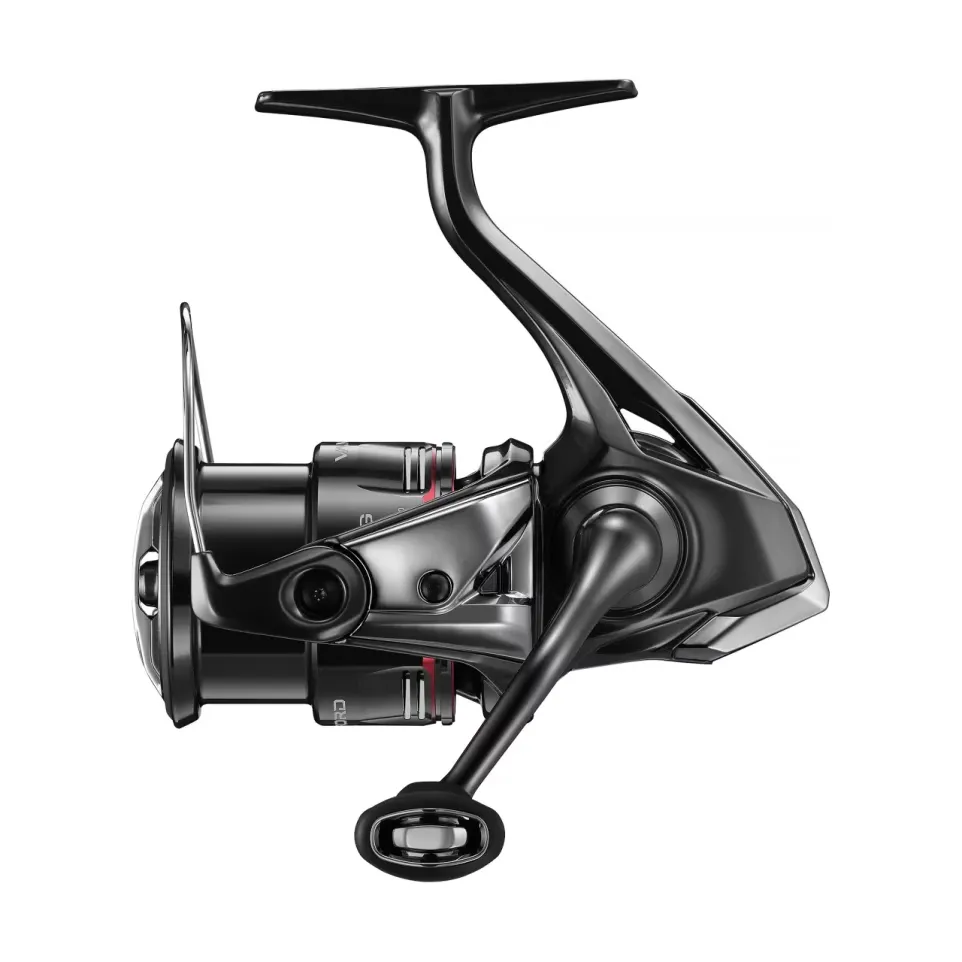

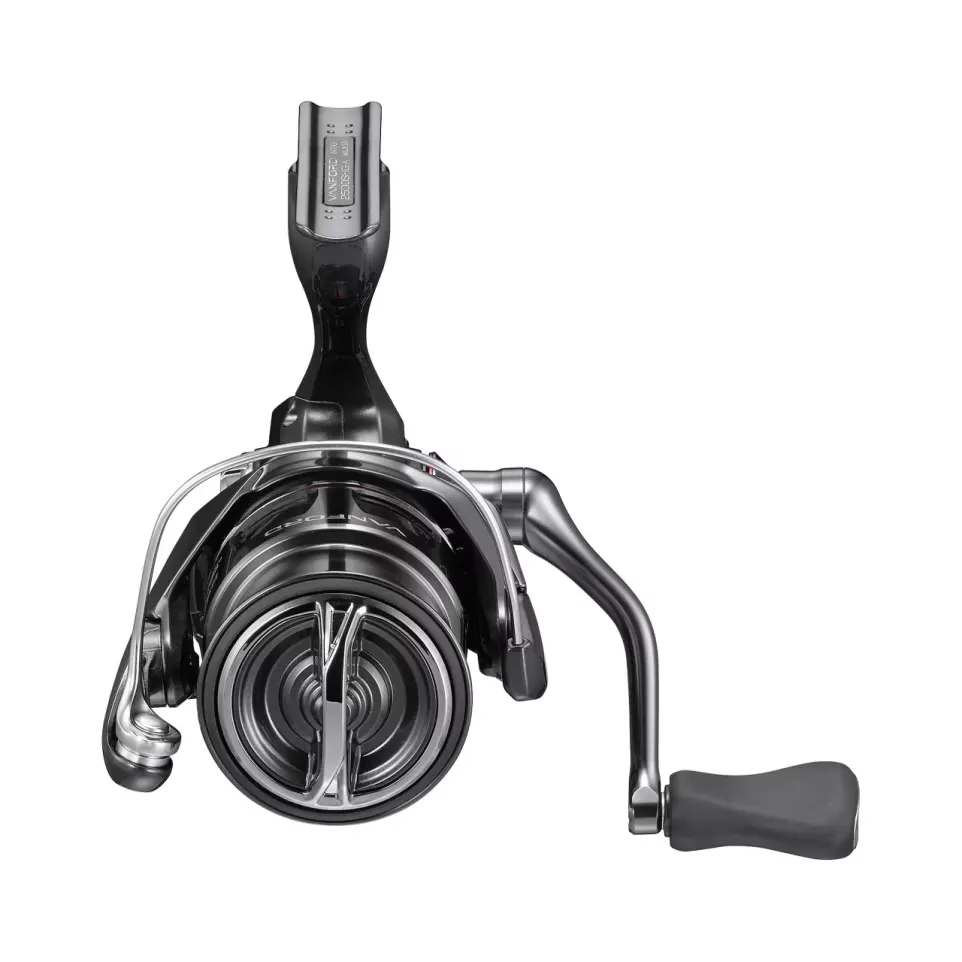

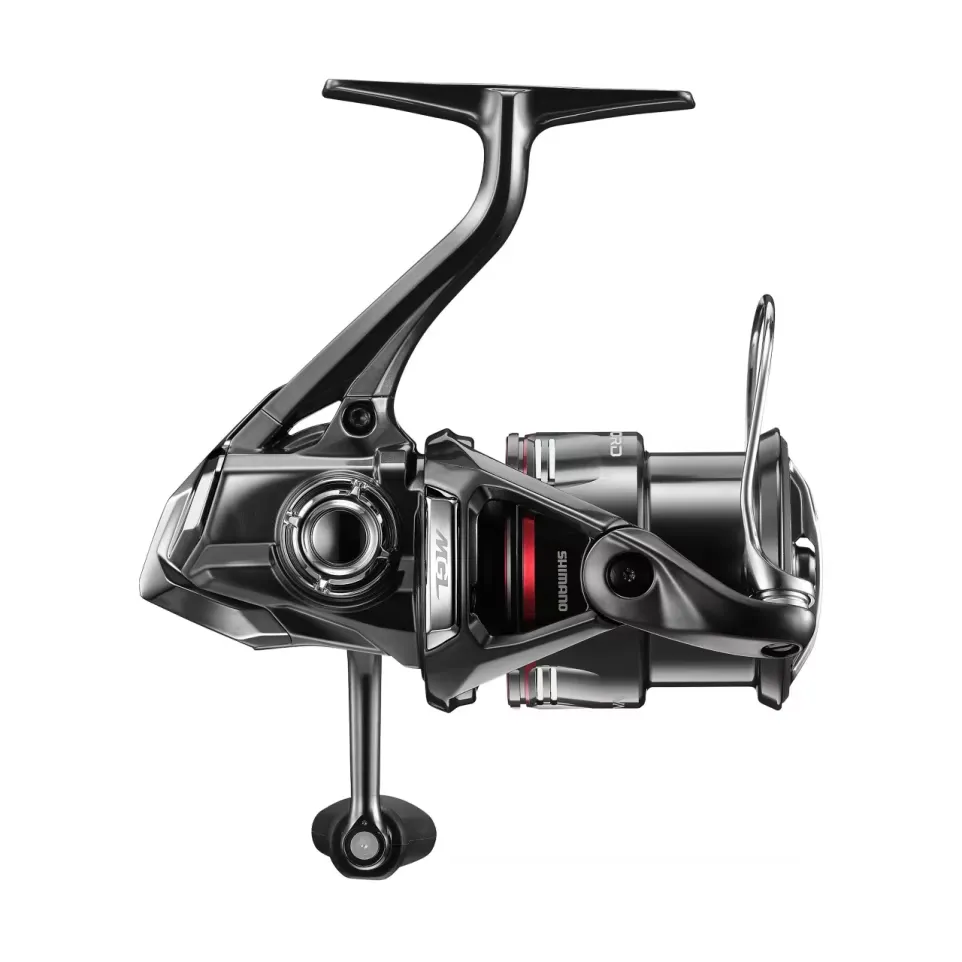

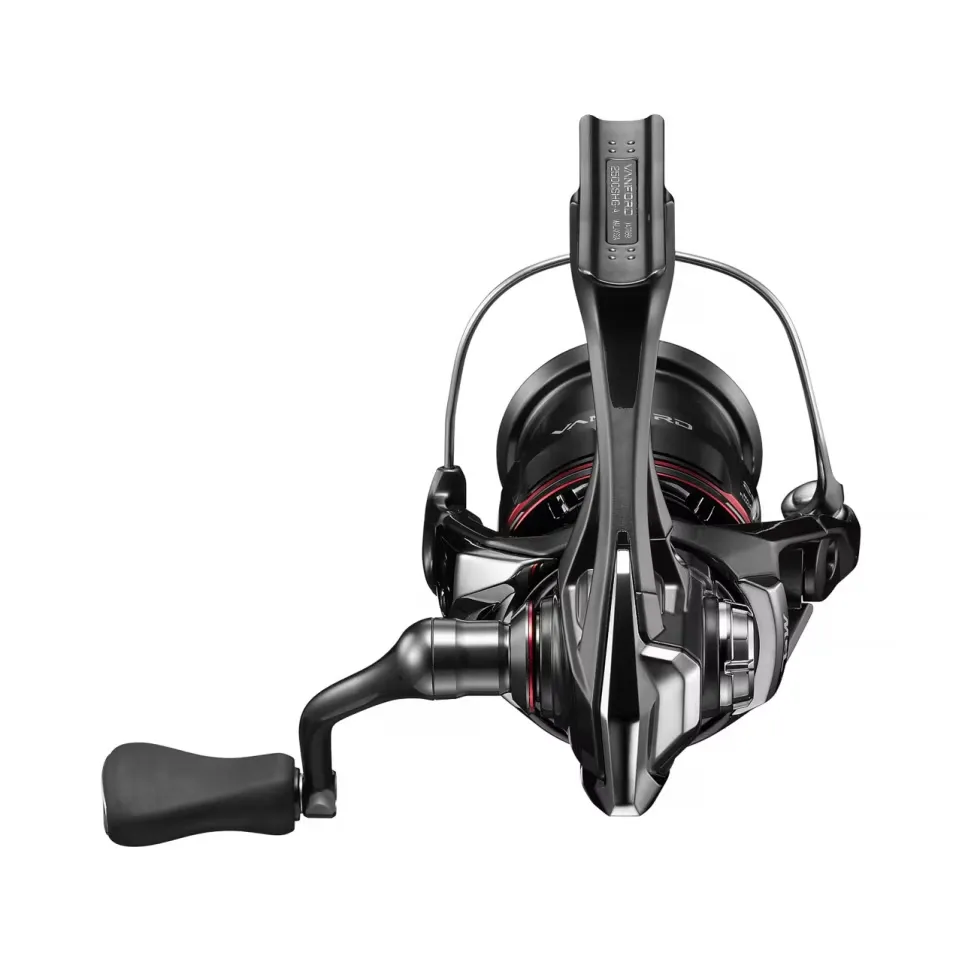

Sculpted from over a decade of engineering advancement and a rich lineage of predecessors, the new Vanford tests the boundaries of technology and engineering found in spinning reels. Built upon a CI4 body for both a lightweight feel and carbon rigidity, the Vanford incorporates a MagnumLite (MGL) Rotor for up to 48% less rotational inertia than traditional rotor construction for a quick response in critical situations.
The Vanford features Shimano’s cold-forged HAGANE Gear and many of Shimano’s premium technologies for increased fishing performance and years of durability. Vanford’s SilentDrive and MicroModule Gear II technologies combine to produce a new level of smooth rotational performance while reducing overall reel vibration.
Vanford also incorporates Long Stroke Spool technology to increase casting distance while producing a smoother line lay on the spool during retrieval. X-Protect technology and water-channeling construction enhance Vanford’s water resistance and overall durability — an important feature for a reel sure to be found in inshore environments. From ice fishing and drop-shot fishing for smallies in the sweetwater to stalking tailing fish in the flats, the Vanford has no equal. A legend is born.
Note: The Vanford 500 (VF500F) does not include the following features: MGL Rotor, MicroModule Gear II, X-Protect Body or Long Stroke Spool.
MGL Rotor
Micro Module II Gearing
CI4
Silent Drive
Long Stroke Spool
HAGANE Gear
X-Protect
SKU NUMBER | GEAR RATIO | PRACTICAL USE FORCE (KG) | MAXIMUM DRAG FORCE(KG) | WEIGHT (G) | SPOOL RING DIA(MM) / SPOOL STROKE DIA(MM) | LINE RETRIEVE / CRANK (CM) | HANDLE LENGTH (MM) | BEARINGS |
500 | 5.6 | 1 | 2.5 | 140 | 39.5/8 | 69 | 40 | 7/1 |
1000 | 5.1 | 2 | 3 | 150 | 40/13.5 | 64 | 40 | 7/1 |
C2000HG | 6.1 | 2 | 3 | 150 | 43/13.5 | 82 | 45 | 7/1 |
2500HG | 6 | 3.5 | 9 | 180 | 47/17 | 89 | 55 | 7/1 |
C3000XG | 6.4 | 3.5 | 9 | 180 | 47/17 | 94 | 55 | 7/1 |
4000XG | 6.2 | 6 | 11 | 215 | 52/19 | 101 | 57 | 7/1 |
C5000XG | 6.2 | 6 | 11 | 220 | 52/19 | 101 | 57 | 7/1 |
