OVERVIEW

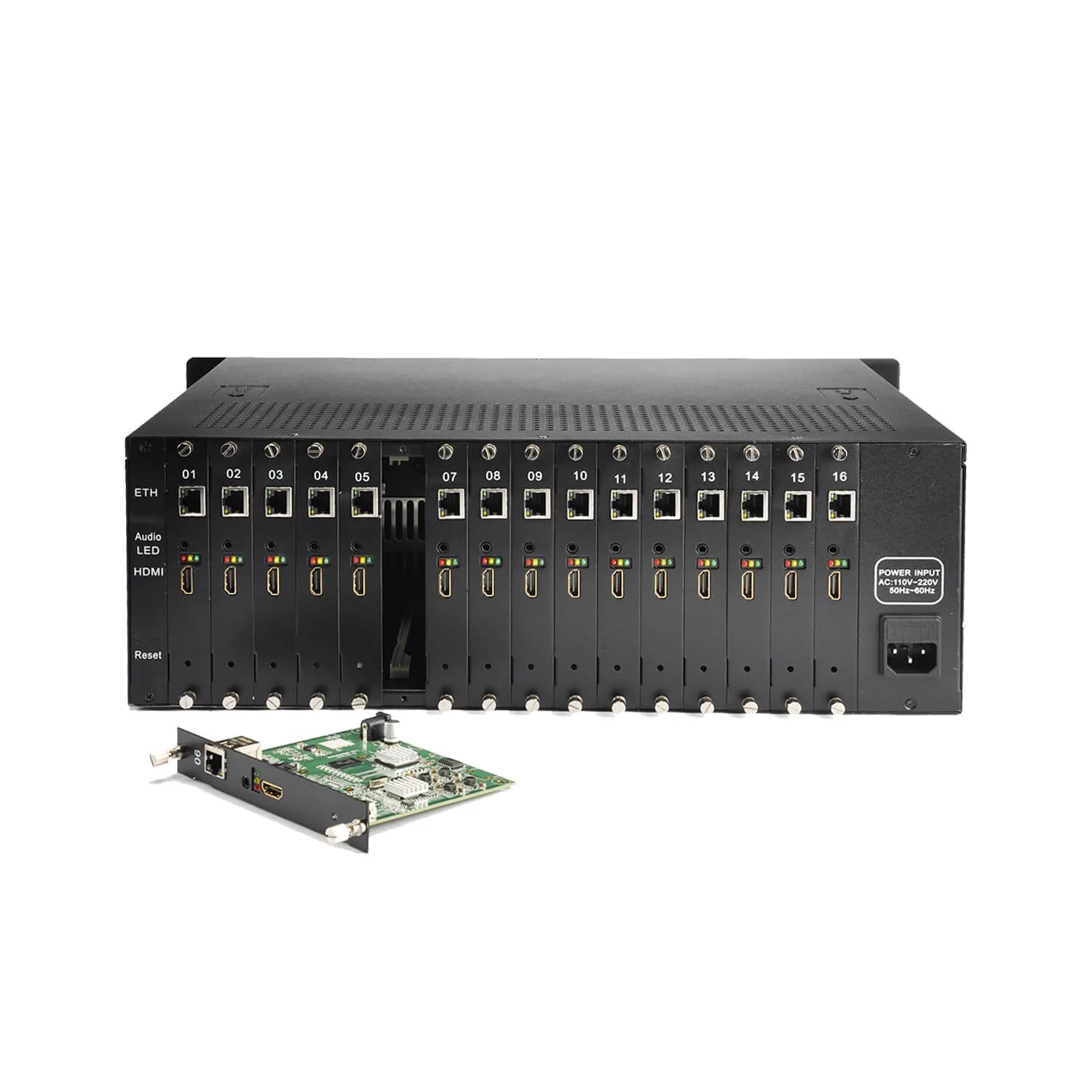

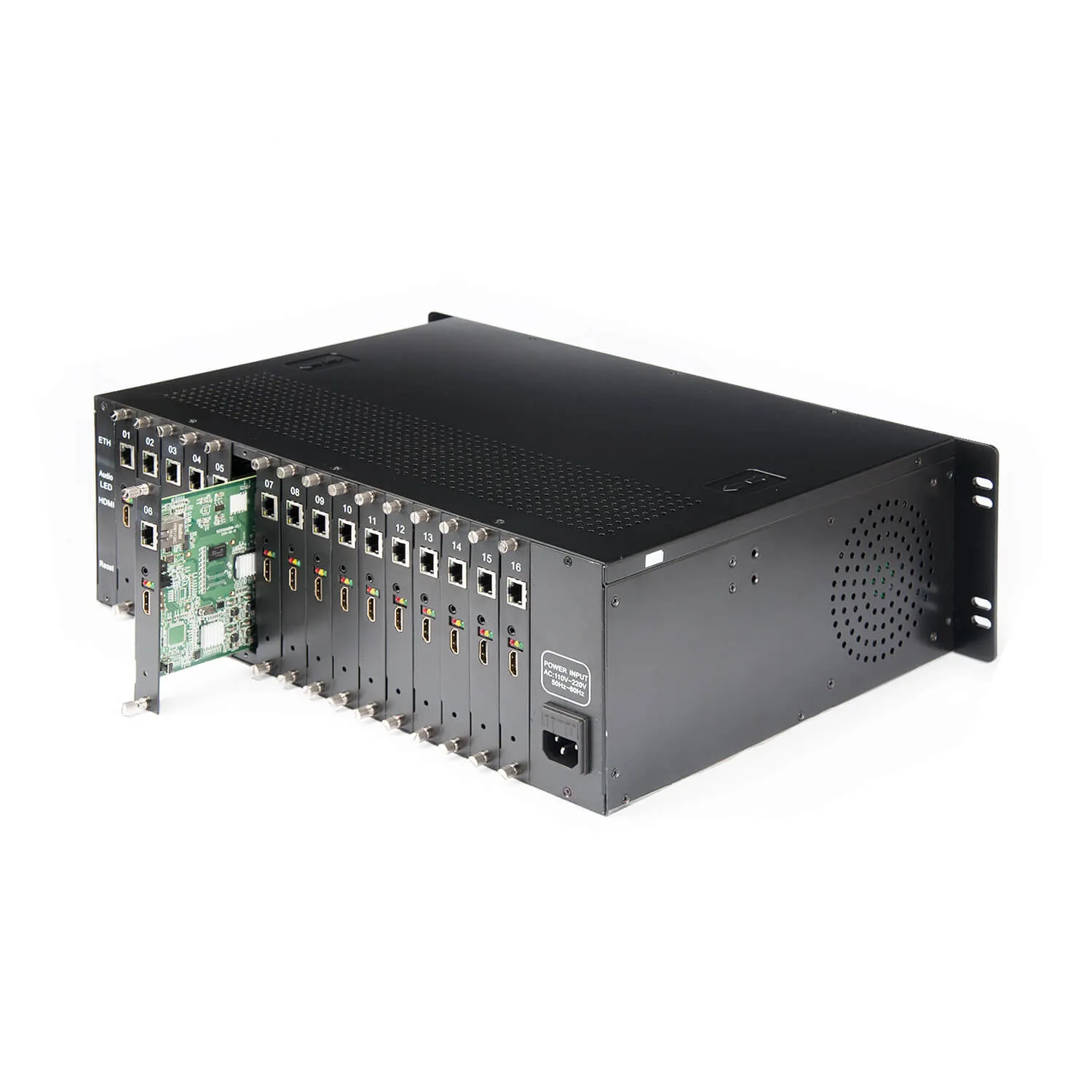

DMB-8916 Enhanced H.265 HD 16-Channel IPTV Encoder features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of h.265/MPEG-4 AVC, which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder. DMB-8916 Enhanced h.265 HD 16-Channel IPTV Encoder is equipped with 16 plug-in module card, every module support 1*HDMI/VGA/AV/YPbPr, and output up to 4 different streams with different resolution or protocols, which makes it suitable for multi-screen(PC, TV, Mobile) service. Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.
DMB-8916 Enhanced h.265 HD 16-Channel IPTV Encoder owns 3U structure, perfect designing, adding fully supporting VLC decoding functions, can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

FEATURES

◉Video Input: 16-Channels HDMI/VGA/AV/YPbPr
◉Support up to 1080P HD video input
◉Support h.265 Main/High/Baseline Profile and MP3 & AAC audio compression
◉Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s
◉Support streaming resolution settings
◉GOP frame rate settings supported
◉Capable of image parameter settings
◉Insertable of logo and Scroll Caption; Adjustable of audio gain;
◉Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
◉Support up to 4* TS over IP stream out.
◉Switchable of audio output mode: Left, right and Stereo
◉Configurable of Multi-rate, Multi-resolution, Multi-protocol
◉Providing HLS, RTSP/HTTP/UDP/RTP or RTMP protocol
◉Support HDCP protocol, ONVIF Network Video Protocol
◉Support multiple equipments display at the same time on a computer
◉System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
◉Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
◉Web-based management
◉Full-duplex mode 1000M
APPLICATIONS
◉Digital TV Broadcasting System
◉Digital TV Programs Transmission
◉Hotel TV System
◉Head-end system of Digital TV branch network
◉CATV Broadcasting system
◉Edge side of Digital TV backbone network
◉IPTV & OTT system
